Rockchip RK3576 Processor Industrial Mini PC With 2 LAN 4 COM

Name: Rockchip RK3576 Processor Industrial Mini PC With 2 LAN 4 COM
Brand: Helor PC
Price: 302.28 USD

Quality Rockchip RK3576 Processor Industrial Mini PC With 2 LAN 4 COM for sale

Model Number : X103

Memory : 1*LPDDR4, up to 8GB

Price : 302.28usd

Provide AI development tools : Provide AI development tools

Certification : Ce, Rohs, Sgs

Network : 2*Ethernet ports, 10/100/1000M

MOQ : 1 Piece

Delivery Time : 15 work days

OS Support : Native Android system

COM Port : 2RS232, 2RS232/2RS485 (jumper selectable), 2UART TTL

Payment Terms : T/T,D/A,D/P,L/C,Western Union

Onboard backlight control : 12V backlight power supply and control

Neural Processing Unit (NPU) : Built n Neural Processing Unit (NPU), 6.0 TOPS @INT8 performance. Supports Caffe / Mxnet / TensorFlow / PyTorch / TF Lite / ONNX / Darknet models

Supply Ability : 50000 pieces/month

Front Interfaces : 1*Power Switch

Rear Interfaces : 1*GPIO, 1*SIM slot, 2*RS232, 2*RS232/485 (jumper selectable RS485), 2*USB3.0, 2*Gigabit Ethernet ports, 1*Audio In/Out, 1*HD-MI, 1*Power Connector

Place of Origin : China

Motherboard size : 155mm*80mm*21.5mm

Packaging Details : Color Box

Storage : 1*eMMC 128GB, 1*SATA 3.0 (for SSD/HDD storage expansion)

Brand Name : Helor PC

Processor System : Rockchip RK3576

Contact Now

Rockchip RK3576 Processor Industrial Mini PC With 2 LAN 4 COM

Industrial PC Product Introduction

This industrial tablet PC is equipped with 2*Realtek Gigabit Ethernet ports to support multi network deployment, and can be used as a gateway, software router, or for internal and external network isolation. It comes with 4*RS232 ports by default; COM3 and COM4 can be switched to RS485 via jumpers. Compatible with industrial peripherals, sensors, access control systems, PLCs and other industrial equipment. A reserved SIM card slot allows installation of 4G/5G modules to enable wireless connectivity. Onboard LPDDR4 memory supports up to 8GB. Storage features eMMC 128GB and 1*SATA 3.0 interface for expandable SSD/HDD.

Industrial PC Product Specifications

Processor System	Rockchip RK3576
Power input	DC 12V
System Watchdog	Supports Hardware/Software Watchdog
Language Support	Multi language
Input Method	Standard Android keyboard, third party input methods (Chinese, Korean, Japanese, etc.) are optional.
Operating Temperature	-10℃ ~ 60℃
Storage Temperature	-20℃ ~ 70℃
Storage Humidity	10%~80%

Industrial PC CPU Performance

Powered by Rockchip RK3576 processor, consisting of quad core Cortex A72 + quad core Cortex A53 with a maximum frequency of 2.2GHz, enabling smooth multi task processing.
It integrates a 6 TOPS RKNN NPU hardware AI acceleration engine. AI inference tasks such as object detection, image recognition and visual analysis can be executed locally to reduce CPU load, accelerating implementation of machine vision and intelligent recognition projects.

Rockchip RK3576 Processor Industrial Mini PC With 2 LAN 4 COM

Industrial PC Application Scenarios

This portable industrial PC is widely adopted in AI related fields including AI servers, facial payment terminals, security monitoring, medical equipment, transportation, finance, industrial control, smart education and intelligent retail.

Rockchip RK3576 Processor Industrial Mini PC With 2 LAN 4 COM

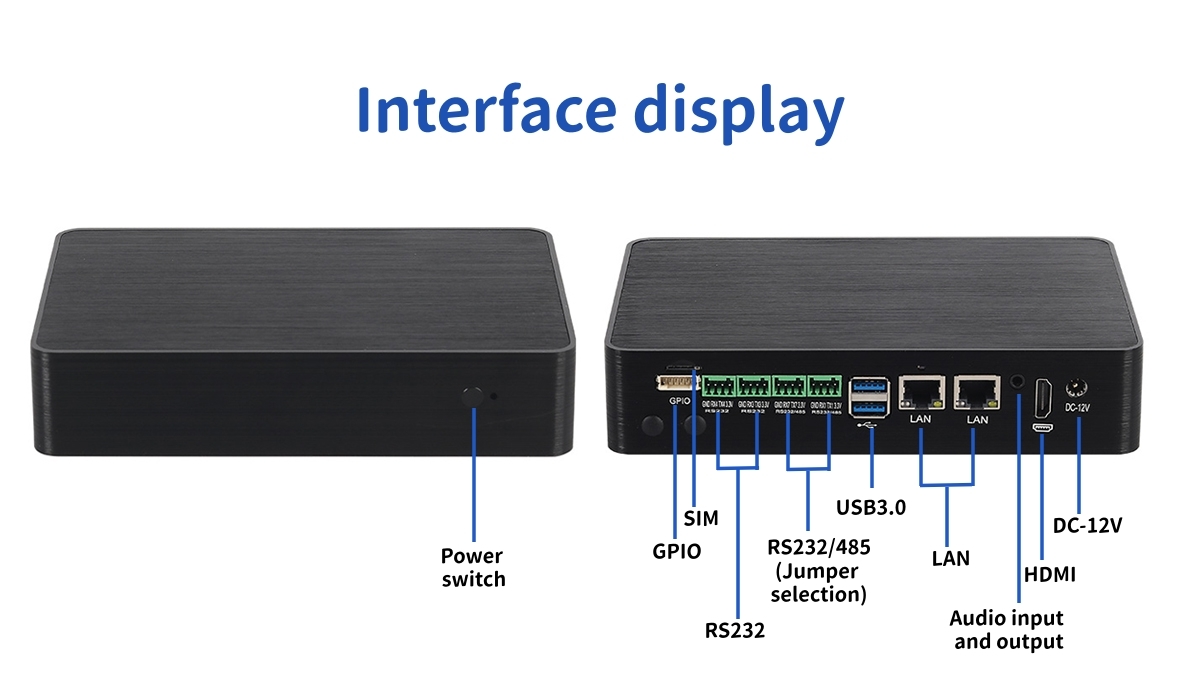

Industrial PC Interface Description

This industrial mini PC comes with comprehensive and neatly arranged interfaces. Front interfaces: 1*Power Switch;
Rear interfaces: 1*GPIO, 1*SIM slot, 2*RS232, 2*RS232/485 (jumper selectable RS485), 2*USB3.0, 2*Gigabit Ethernet ports, 1*Audio In/Out, 1*HD-MI, 1*Power Connector.

Rockchip RK3576 Processor Industrial Mini PC With 2 LAN 4 COM

Industrial Mini computer Customization

We provide one stop OEM/OBM/ODM services for industrial mini PCs. Our customization covers appearance, firmware, hardware circuitry, power supply, etc., all can be tailored to meet your project needs.

Rockchip RK3576 Processor Industrial Mini PC With 2 LAN 4 COM Images
