Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN

Name: Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN
Brand: Helor PC
Price: 318.44 USD

Quality Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN for sale

Model Number : X116

Memory : 2*SO-DIMM memory slots, support dual-channel 3200MHz DDR4 memory, maximum support up to 64GB.

MOQ : 1 Piece

Delivery Time : 15 work days

Audio : Onboard ALC897 6-channel high-definition audio controller, supports MIC/Line-out/amplifier (supports 2Ω 5W)

BIOS : 64Mb Flash ROM

Payment Terms : T/T,D/A,D/P,L/C,Western Union

GPIO : Supports 4-channel input/output GPIO

Storage Temperature : -20°C to +70°C

Price : 318.44usd

Fan headers : 1*4-pin CPU fan header, 1*4-pin system fan header

Storage Humidity : 5%-95% relative humidity, non-condensing

Dimensions : ≈242mm*244mm*95mm

Supply Ability : 50000 pieces/month

TPM : Supports external TPM 2.0 via 2*6 pin header, supports onboard TPM 2.0

Operating Temperature : -10°C to +60°C

Certification : Ce, Rohs, Sgs

Network : 2*Realtek 8111H Gigabit Ethernet

Place of Origin : China

Storage : 2*SATA 3.0 interfaces; 1*M.2 KEYM 2280/2242 PCIe 3.0*4 slot, supports NVMe and SATA SSDs (auto-detection)

Packaging Details : Color Box

Power Type : Supports 12~19V DC power input

Brand Name : Helor PC

Processor System : Intel Celeron G6900

Contact Now

Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN

Product Introduction Of Industrial Mini computer

This industrial grade mini PC features robust hardware configuration and powerful expandability, perfectly suited for diverse scenarios such as industrial automation, security monitoring, multimedia scheduling and daily office tasks. It is equipped with dual Realtek 8111H Gigabit Ethernet ports for high speed and steady data transmission. Network isolation and link aggregation are available to meet industrial networking requirements. 6*COM ports are built n for connection with PLCs, sensors and instruments. 2*SO‑DIMM slots support dual‑channel DDR4 3200 memory with a maximum capacity up to 64GB, enabling smooth multitask running.

Product Specifications Of Industrial Mini computer

Processor System	Intel Celeron G6900
Memory	2*SO-DIMM memory slots, support dual channel 3200MHz DDR4 memory, maximum support up to 64GB.
Network	2*Realtek 8111H Gigabit Ethernet
Storage	2SATA 3.0 interfaces 1M.2 KEYM 2280/2242 PCIe 3.0*4 slot, supports NVMe and SATA SSDs (auto detection)
Front Interfaces	2USB 2.0, 1Type-C
Rear Interfaces	6COM, 1DC 12-19V, 1HD-MI, 1VGA, 2USB 3.0, 2LAN ports, 1Mic jack, 1Headphone jack
Expansion Slots	1Mini PCIe slot, supports WiFi/4G 1PCIe 4.0*4 Slot
Power Input	DC 12V-19V
OS Support	Win10/11, Linux
Watchdog	Supports hardware reset function (256 levels, 0~255 seconds)

CPU Performance Of Industrial Mini computer

This Intel processor features a pure performance-core configuration, with a 2 core, 2 thread architecture, a base frequency of up to 3.40GHz, and 4MB of Intel Smart Cache, ensuring fast and stable program computing response.

Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN

Application Scenarios Of Industrial Mini computer

This PC portable covers all industries and is widely used in industrial automation, factory assembly lines, banking and financial systems, access control gates, rail smart transportation, commercial displays, and other fields.

Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN

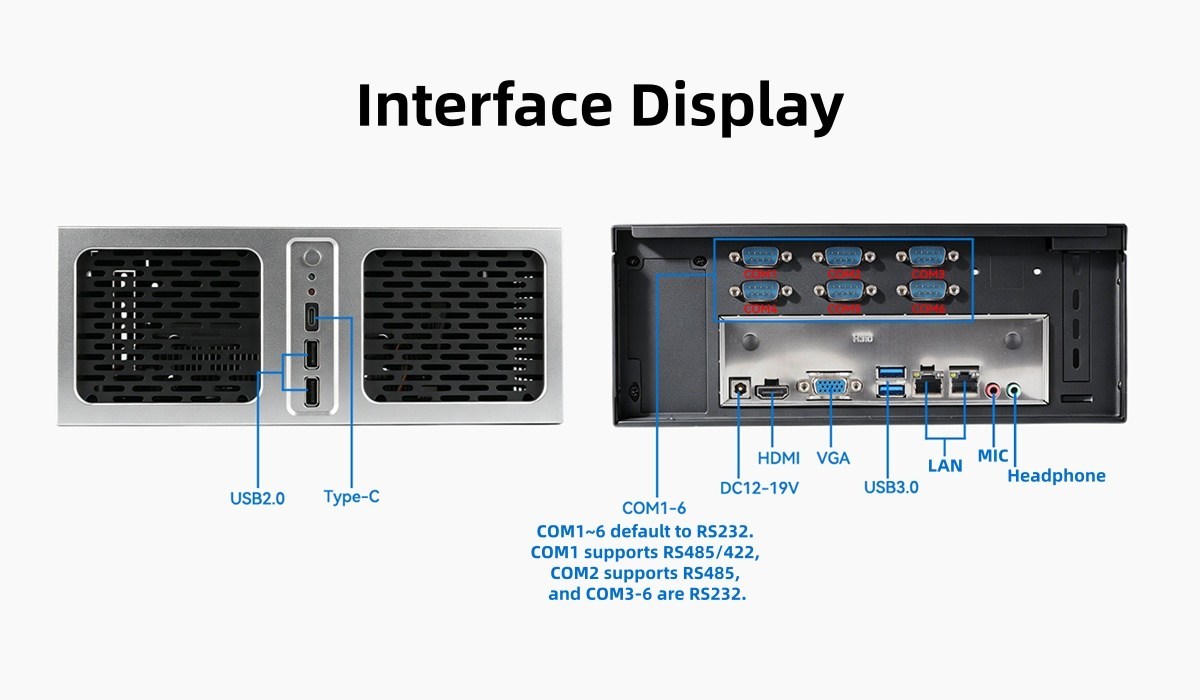

Interface Description Of Industrial Mini computer

This industrial mini PC has complete and well arranged interfaces. Front interfaces: 2*USB 2.0, 1*Type-C;
Rear interfaces: 6* COM, 1 *DC 12-19V, 1*HD-MI, 1*VGA, 2*USB 3.0, 2*LAN ports, 1*Mic jack, 1*Headphone jack.

Intel Celeron G6900 Processor Industrial Mini PC With 6 COM 2 LAN

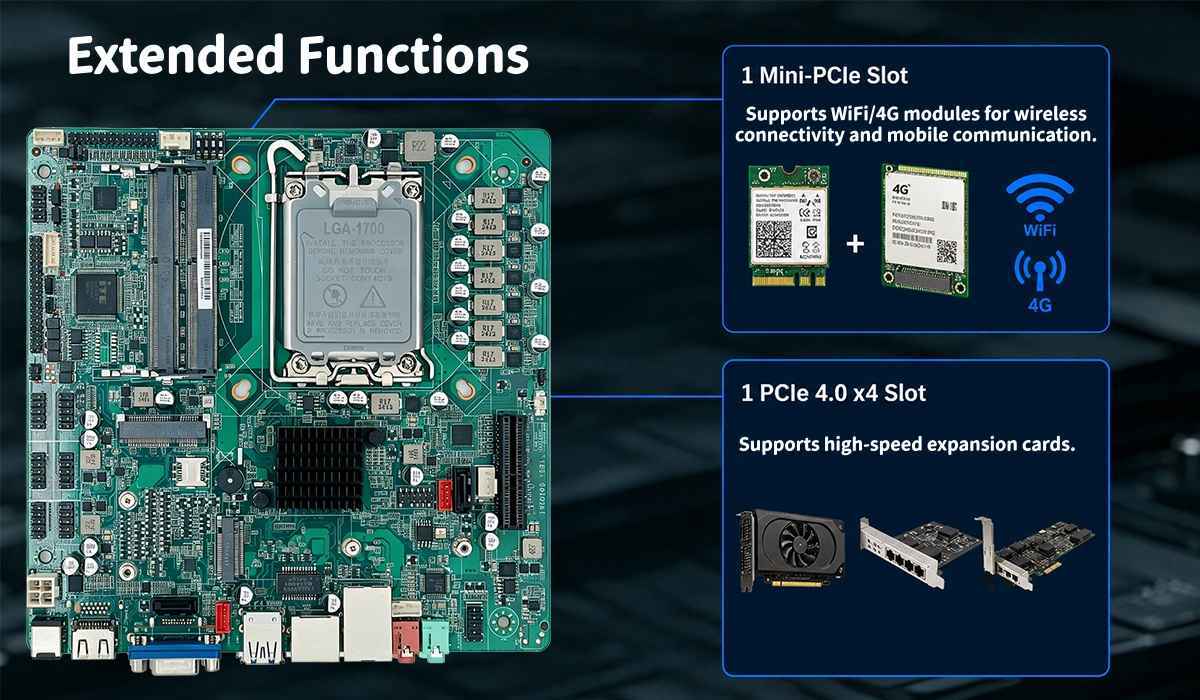

Expandable Functions Of Industrial Mini computer

This industrial computer features an expansion slot with 1*Mini PCIe slot, which supports WiFi and 4G module expansion to meet wireless networking and mobile communication needs. It also includes 1*PCIe 4.0*4 slot, supporting high speed expansion cards such as discrete graphics cards, high-speed network cards, and storage controllers, significantly enhancing performance scalability.

Customization Of Industrial Mini computer

We provide one-stop OEM/OBM/ODM services for industrial mini PCs. Our customization covers appearance, firmware, hardware circuitry, power supply, etc., all can be tailored to meet your project needs.
